Dual Fiber 1310nm 1x8 CH Optical CWDM Mux Demux Module

Brand Name : GEZHI or OEM

Model Number : 8+1CH-CWDM-Rack

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Item Name : Optical CWDM

Wavelength : 1470~1610+1310nm

Channel Spacing : 20nm

Line Type : Dual Fiber

Connector : LC/UPC

Application : Line monitoring

Contact Now

1x8 CH Optical CWDM Mux Demux Module +1310nm Port dual fiber

GEZHI’ 1x8 Optical CWDM Mux and Demux in Optical Transport Networking System utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. The Optical CWDM packed a mux and demux into 1U 19" Rack Mount which with LC/UPC Adaptor. The operating wavelenght of 1x8 CH optical CWDM from 1470nm to 1610nm with 1310nm port and a upgrade port for Fibre Extender and future development. The 1x8 CH CWDM Mux&Demux Module is use dual fiber.

Features

High channel isolation

High Quality & Low Cost

Fully compatible with all ITU-T CWDM optics

Built-in Demux in one unit, working on single network fibers

Epoxy free optical path

Applications

CATV Fiber Optic Links
Metro/Access Network
Telecommunication

Line monitoring
Fiber optical amplifier

Cellular Application

Specification

Parameter 8CH+1 Mux + Demux
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610nm+1310nm Port
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.5dB
Isolation(dB) Adjacent Channel 30
Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40～85
BOX Package (mm) 19" 1U Rackmount

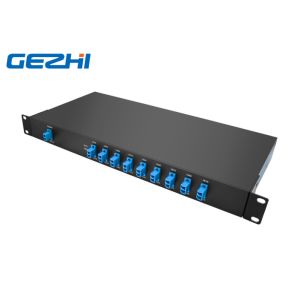

8+1CH Optical CWDM with 19" 1U Rack Mount

Dual fiber Optical CWDM Solution

Dual Fiber 1310nm 1x8 CH Optical CWDM Mux Demux Module
